FOSTAR-300B
型號：3D FOSTAR -300B 汽車四輪定位儀；
產地：中國－珠海：
注冊商標：ZHZY
產品型號：（FOSTAR-300B），
產品外觀圖片如下：（主色有紅）
軟件采用WIN7-64位正版操作系統及聯想品牌電腦，F(xiàn)OSTAR系列3D四輪定位軟件的注冊專利證以及操作界面如下。Model: 3D FOSTAR -300B car wheel aligner;
Place of Origin: China - Zhuhai:
Registered trademark: ZHZY
Product model: (FOSTAR-300B),

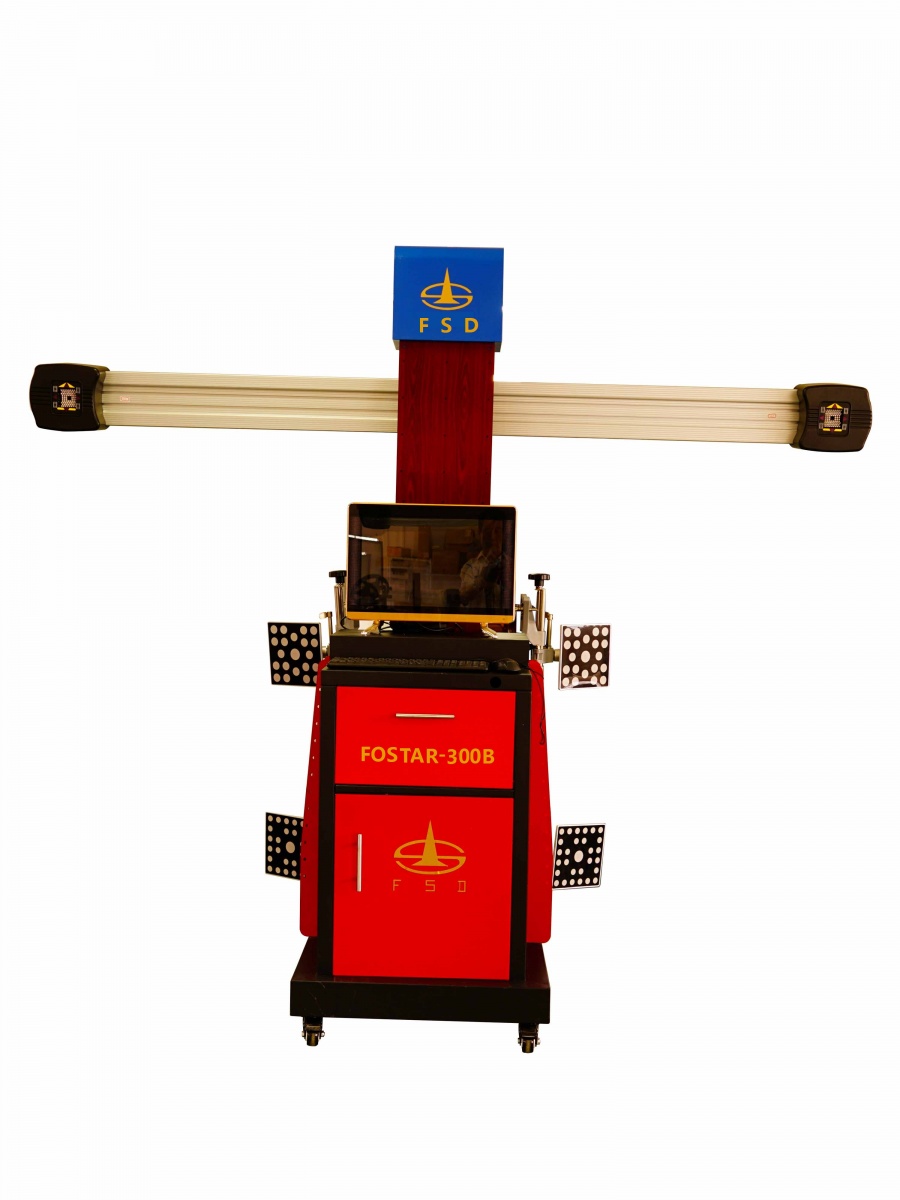

The appearance of the product is as follows: (The main color has red)
The software adopts WIN7-64-bit genuine operating system and Lenovo brand computer. The registered patent certificate and operation interface of FOSTAR series 3D four-wheel positioning software are as follows.
1.products from FSD series: the use of genuine WIN7 operating system, the four reflection plate before and after using different patterns to design, column mainly adopts the Aluminum Alloy column was tall, four point clamp can be placed on the two side of the column rack, cabinet adopts movable chassis, column convenient height adjustable fixed camera with a certain height; SONY imported camera 5 million pixel camera system, image processing speed of 30 frames per second, reflecting plate shell using aerospace Aluminum Alloy materials, dynamic visual algorithm technology, the software is easy to quickly read data; 3D dynamic image display operation guidance operation; roll compensation, short distance micro cart, wheelbase and track difference, accurate detection data, target real-time monitoring, standard four point fixture can check 10-23 inch rims, the equipment maintenance is simple, no need of regular calibration; The aluminum alloy corner plate is convenient to check the parameters of the direction, the parameters of the front wheel and the angle of the front wheel; the super database is updated once a year for free of charge; the product is certified by the ISO quality system and the European Union CE safety certification.
2. aluminum alloy beams are treated by full surface oxidation. The assembly consists of two cameras, a light plate and a lens system. The columns are manually mounted and adjustable at different heights.
3. main technical parameters of products
| Location parameter | Accuracy (center value) | Accuracy range | Maximum measuring range |
| Display accuracy and measurement accuracy | ±0.01°/0.01mm | Measurement repeatability±0.01°or0.01mm | |
| Toe | ±0.015° | ±0.01° | ±30° |
| Dip angle | ±0.025° | ±0.01° | ±30° |
| Kingpin inclination | ±0.025° | ±0.01° | ±15° |
| Kingpin inclination | ±0.025° | ±0.01° | ±20° |
| thrust angle | ±0.015° | ±0.01° | ±6° |
| Maximum turning angle | ±0.015° | ±0.01° | ±30° |
| Recession angle | ±0.015° | ±0.01° | ±6° |
| Tread | ±0.25cm | ±0.01° | 3000mm |
| Wheelbase | ±0.25cm | ±0.01° | 8000mm |
| diagonal | ±2mm | ±0.3cm | 12000mm |
| Rolling radius | ±2mm | ±0.3cm | 700mm |
| Product accessory name | Matching number | Product accessory name | Number of parts | Remarks |
| Aluminum alloy Liang Zongcheng | 1 | Cabinet, column assembly | 1 | |
| Aluminum alloy corner plate | 2 | Four point fixture | 4 | |
| Direction fixing bracket | 1 | Front and rear wheel stop | 4 | |
| Computer host | 1 | Monitor | 1 | 18.5inch |
| keybord, mouse | 1 | Whole wire harness | 1 | |
| Liang Zongcheng coupling | 1 | Column seat | 1 | |
| Column cap | 1 | Fixture hanger | 4 |
0.1. The camera has fast response, low temperature performance and good, can work at subzero temperature of about 30 degrees, the cart time is only 3S, the camera speed of 30 photos per second speed
0.2. Reflective board over the horizon, can be in the range of about 12 meters to find the target, you can do longer vehicle detection;
0.3. Measurement accuracy in the industry first-class;
0.4. Software supports a variety of reflective patterns;
0.5. The product has passed ISO quality system certification and export CE certification;
0.6. Guan Jian for aerospace aluminum alloy 7075-T6 super hard aluminum to do
0.7. Computer attached to the 3D operation of the screen, simple and convenient operation. With its own installation and operation guide function
0.8. The software is easy to operate, easy to use, intuitive 3D display
0.9. National UNPROFOR, remote service system
10. All over the country are equipped with after-sales service outlets, remote technical support
11. Regular return visit system of products, continuous innovation, once a year free update data packets
12. The product is specially designed for the drainage design. It is convenient to check the data
13) free training staff
14. Dynamic calculation of the body parameters, not subject to the impact of the lifting machine
15. Automatic calculation of body parameters and rolling compensation body parameters
16. Software intuitive response to the four round of the condition and need to solve the problem of repair
