FOSTAR-300Y1
Model: 3D fostar - 300y1
Name: v3d-fostar-300y1-3d automobile four wheel aligner;
Origin: Zhuhai, China
Registered trademark: zhzy (zhzf), fushida Zhanying, zhanxiong, Zhanying, fushida Zhanfeng.
The software adopts win7-64 bit operating system, Lenovo computer and SSD;
All the products are patent design
The product appearance pictures are as follows: (the main colors are red and blue)
Product structure features: mobile cabinet, intelligent short distance electric lifting of column; camera adopts Sony imported camera 5 megapixel lens system, processing speed 30 pictures per second; reflector shell is made of aerospace aluminum alloy material, dynamic vision algorithm technology, software operation is simple, fast reading data; 3D dynamic display image operation guide operation It can be used for: double column lift, small scissors lift and other platforms; the patent number of product software: 2017sr303898; the patent number of automatic lifting mechanism: 202021852998.5; Aluminum alloy corner wheel is convenient to check the parameters such as steering base parameters and front wheel toe in angle; the standard database is updated once a year for free; the product has passed ISO quality system and EU CE safety certification.

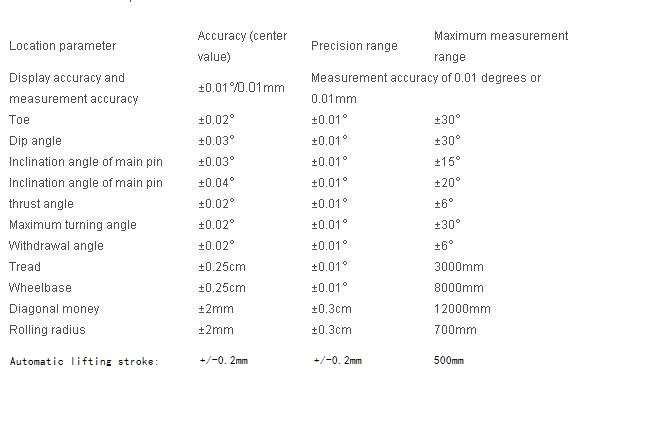

The main technical parameters of the product are as follows:
.JPG)
3. Main features of the product
The camera has fast reaction speed and good low temperature performance. It can work at - 30 ℃ or so. The cart time is only 3 s, and the camera speed is 30 photos per second
2). The reflector is beyond the visual range, and can find the target within the range of about 12 meters, which can be used for extended vehicle detection;
3). The measurement accuracy is in the industry standard;
The software supports multiple reflective patterns;
The products are certified by ISO quality system and exported to EU CE certification;
6). The key parts are made by mould design
The computer is equipped with 3D operation screen, which is easy to operate. It has the function of self installation and operation guide.
The software is easy to operate, easy to use, intuitive 3D display
9). National joint insurance and remote service system
All over the country have after-sales service network, technical remote support
11). Product regular return visit system. Continuous innovation, once a year data free update package
12) The product is specially designed for trench type, with lower display to facilitate data observation.
13) The factory trains the staff free of charge
14) Dynamic calculation of body parameters, not affected by lift roughness
15) Auto calculation of body parameters and rolling compensation of body parameters
16) The software can directly reflect the condition of four wheels and the repair problems that need to be solved
